Machinery

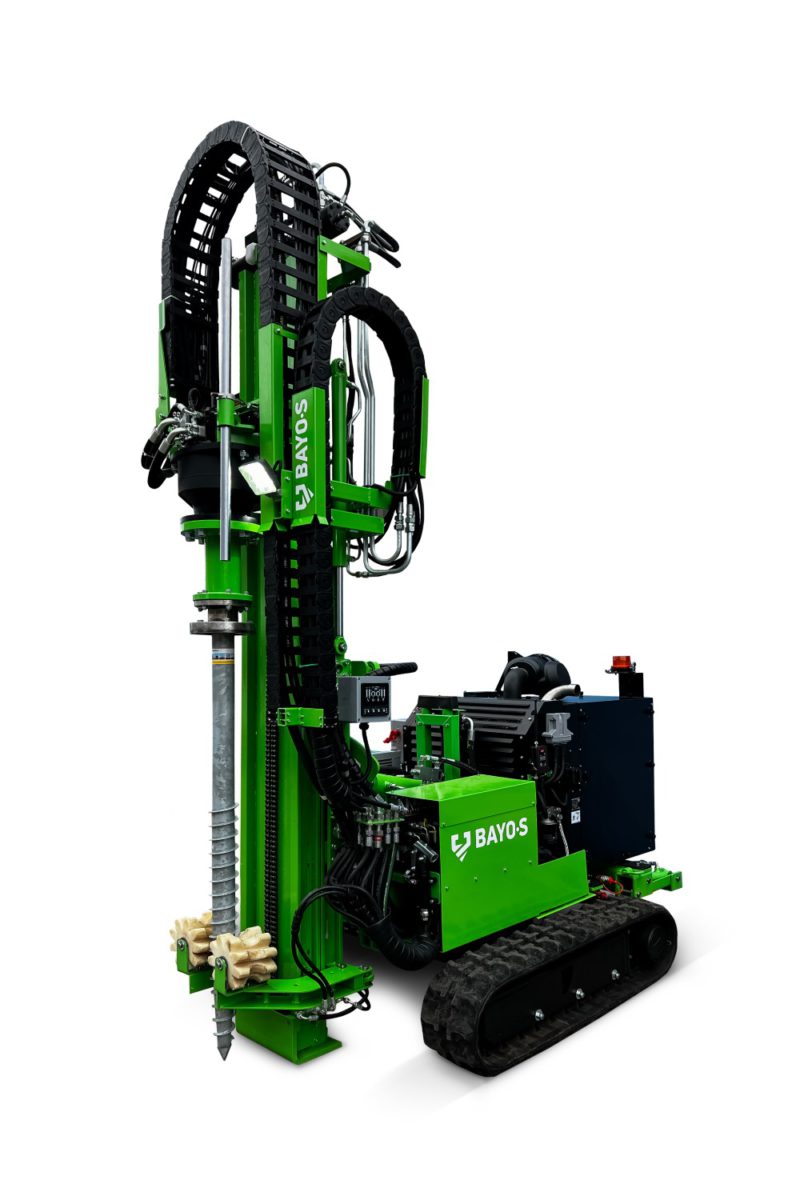

Drilling rig BAYO.S M2
Installing ground screws with a BAYO.S M2 drilling rig is done with very high precision, founding a standard year-round house or cottage in 1-2 days. The machine can precision install 50-100 meters of ground screws per day.
Documentation
The new BAYO.S M2 drilling rigs are equipped with the latest technology and monitoring for correct installation and documentation of all ground screws. BAYO.S can install screws in virtually all soil and terrain types, as well as perform pre-drilling with rock drills and mobile compressor.
New technology
BAYO.S and Danfoss have developed brand new remote-controlled units for M2 drilling rigs. Which makes it easier and safer for the installer to do the right job.
Self-leveling, belt adjustment and weight
The M2 drill rig is equipped with automatic self-leveling of the derrick and belt shifting so the rig can be adjusted from 98 cm to 140 cm in width. The machine weighs 2500 kg.
- Torque: 8 000 Nm
- Push-Down power: 1,500 kg
- Dimensions: (W x H x L): 98/140 x 200 x 350 cm
GEARBOX SET 1:60 EHB 32
Gearbox set 1:60 EHB 32 is designed for installation of BAYO.S screws HOBBY Ø 65 mm and SEMI Ø 76 mm. In combination with the proven Eibenstock EHB 32 two-speed drill, it drills ground screws up to a depth of 1250mm. Pre-drilling is recommended.
- Install up to 30 screws per day
- Maximum torque of the set 4.320 Nm
- Weight of set 38 kg without transport box
MANUAL GROUND SPIKE
BAYO.S Ground spike easily and precisely punch pilot and control holes before you start installing the BAYO.S ground screws.
- Maximum pre-dig a hole in the ground 850 mm
- Weight: 7.5 kg
